Protect your expensive UTV LED whips and eliminate the hassle of removing them for garages, enclosed trailers, and low-clearance obstacles with the TKO Clamping Systems Motorized UTV LED Whip Mount.
Designed and manufactured by TKO Clamping Systems, this heavy-duty powered whip mount allows you to raise and lower your LED whip with the flip of a switch directly from the driver's seat. Instead of disconnecting or removing your whip every time clearance gets tight, simply lower it, clear the obstacle, and raise it back into riding position.
Built specifically for UTVs, side-by-sides, dune buggies, and off-road vehicles, the TKO Clamping Systems Motorized Whip Mount combines convenience, adjustability, and rugged metal construction for riders running tall LED whips.
Whether you're loading your UTV into an enclosed trailer, pulling into the garage, driving underneath trees, or navigating trails with low-hanging branches, the TKO powered LED whip mount gives you control over your whip height without leaving the driver's seat.
TKO Clamping Systems Powered UTV Whip Mount
Tall LED whips provide excellent visibility on the trail and are one of the most recognizable lighting upgrades on a side-by-side. Their height, however, can become a problem when overhead clearance gets tight.
TKO Clamping Systems designed this motorized UTV whip mount to solve that problem.
Approaching a garage door, enclosed trailer, tree branch, carport, shop entrance, or other low-clearance obstacle? Flip the switch to lower your LED whip. Once you've cleared the obstacle, flip the switch again to return the whip to its normal upright riding position.
There's no need to stop your UTV, climb out, disconnect wiring, unscrew the whip, or reinstall it later.
Running Dual LED Whips?
The TKO Clamping Systems Motorized Whip Mount is also an excellent solution for UTVs running dual LED whips.
Install two TKO motorized whip mounts and operate both from a single switch, allowing your matching rear LED whips to raise and lower together.
Before entering an enclosed trailer or garage, lower both whips. Once you're unloaded and ready to hit the trail, raise them back into riding position from the driver's seat.
Help Protect Your LED Whips From Damage
One of the easiest ways to damage an expensive UTV LED whip is simply forgetting how tall it is.
Garage doors, enclosed trailer openings, low tree branches, shop entrances, and other overhead obstacles can bend or break LED whips when there isn't enough clearance.
The TKO Clamping Systems Motorized UTV LED Whip Mount allows you to reduce the overall height of your whip setup without removing the whips from your machine.
TKO also designed the mount so the whip can rotate downward if it encounters an obstacle at low speed, helping reduce the possibility of damaging or breaking the LED whip.
For riders who have invested in premium LED whips, the TKO motorized mounting system adds another layer of protection while making the whips substantially more convenient to use.
Built by TKO Clamping Systems for Demanding Off-Road Conditions
This isn't a lightweight plastic accessory.
TKO Clamping Systems engineered the Motorized UTV LED Whip Mount for the vibration, impacts, dust, rough terrain, and demanding conditions encountered by side-by-sides and other off-road vehicles.
With the exception of the gaskets and hole plugs, the system uses metal construction with no plastic exterior or drive components.
Machined components are manufactured from solid 6061 aluminum, while stainless-steel bolts and screws provide strength and corrosion resistance.
The TKO system has been used in demanding off-road environments, including rock crawling and vehicle rollovers.
Fully Adjustable TKO UTV Roll Bar Mounting System
Every UTV cage and LED whip installation is different, which is why TKO Clamping Systems designed extensive adjustability into the mounting system.

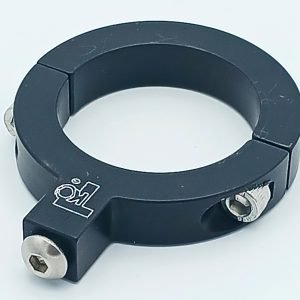

Round roll-bar mounting options are available for bars ranging from 3/4" to 3.25" in diameter, along with a flat-surface mounting option.
Fasteners can be installed 360 degrees around the roll bar, while the mounting hardware can also rotate 360 degrees. This provides substantial flexibility when positioning the powered whip mount on different UTV cages.

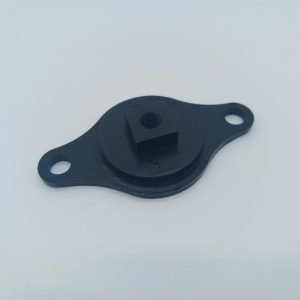

The mounting puck on the rear of the housing can also be installed toward the top, middle, or bottom of the unit, providing even more installation flexibility.
360-Degree LED Whip Position Adjustment
The LED whip attachment point on the TKO mount features four set screws that allow the mounting position to be adjusted through 360 degrees.
Simply loosen the set screws, position your LED whip at the desired angle or tilt, and tighten them again to secure the whip.
This adjustability makes it easier to achieve the positioning and appearance you want regardless of where the TKO Motorized Whip Mount is installed on your UTV roll cage.
Ideal for Enclosed UTV Trailers & Garages
If you transport your side-by-side in an enclosed trailer, you already know the problem: tall UTV LED whips can extend well above the trailer opening.
Instead of removing your whips every time you load or unload your machine, the TKO Clamping Systems Motorized LED Whip Mount lets you lower them before entering the trailer and raise them again after unloading.
The same convenience applies when parking your UTV inside a residential garage, shop, carport, or other structure with limited overhead clearance.
For riders who regularly transport or store their machines indoors, the TKO powered folding whip mount eliminates one of the biggest inconveniences of owning tall LED whips.

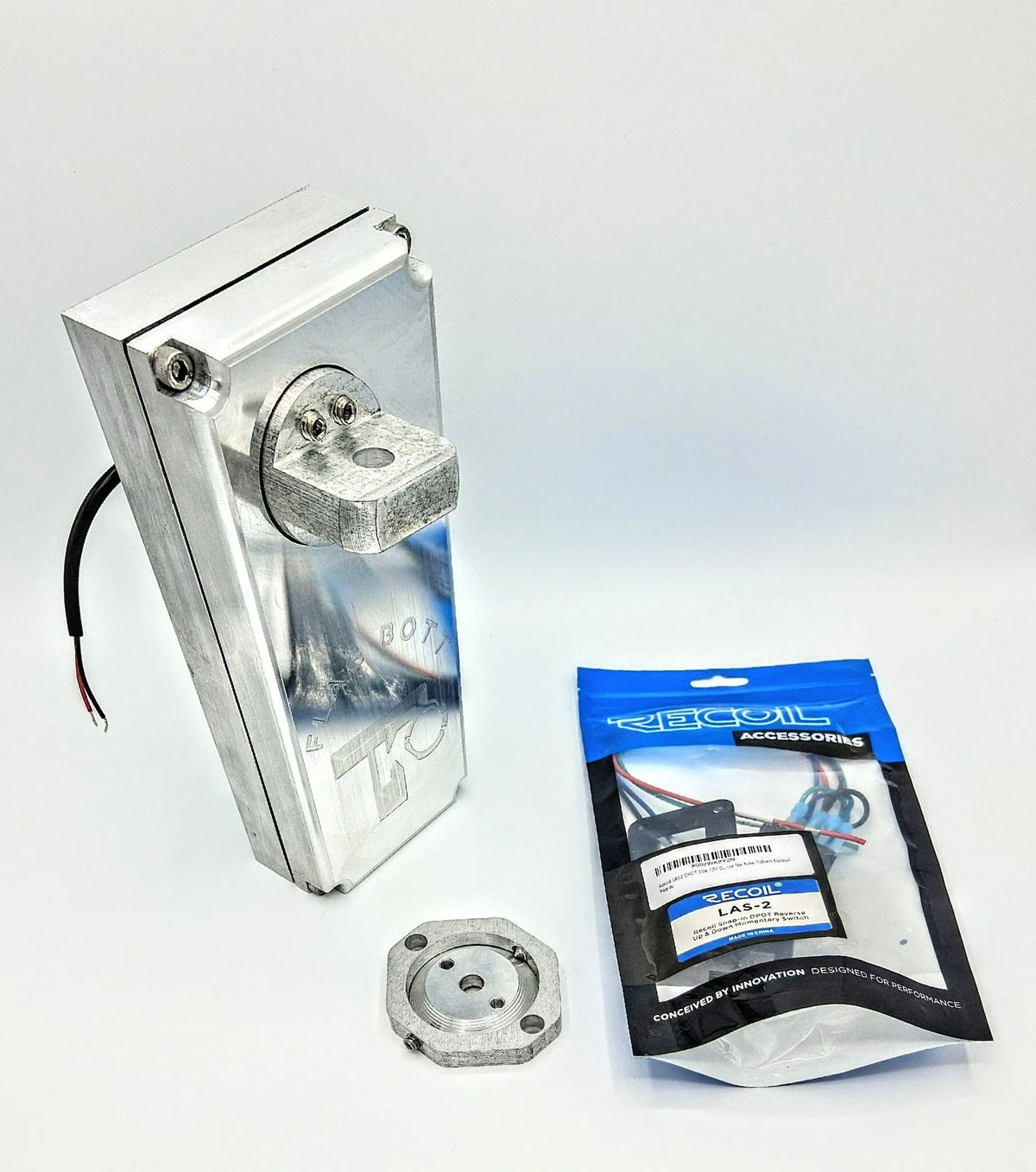

TKO Motorized UTV Whip Mount Kit Includes
Everything needed for installation is included:
-
(1) TKO Clamping Systems Motorized UTV LED Whip Mount Assembly
-
Mounting hardware
-
Fasteners
-
Control switch
-
Written installation instructions
-
Access to online installation, adjustment, and tuning videos
Flat-surface and round roll-bar mounting options are available for bars ranging from 3/4" to 3.25".
TKO Motorized UTV Whip Mount Specifications
-
Manufacturer: TKO Clamping Systems
-
Product: Motorized UTV LED Whip Mount
-
Actuator push capacity: 235 lbs.
-
Actuator pull capacity: 210 lbs.
-
Housing dimensions: 4" wide × 9.5" long × 2" thick
-
Approximate weight: 5 lbs. with mounts and clamps attached
-
Machined components: Solid 6061 aluminum
-
Hardware: Stainless-steel bolts and screws
-
Roll-bar mounting range: 3/4" to 3.25"
-
Flat-surface mounting: Available
-
Roll-bar positioning: 360-degree adjustment
-
Mounting hardware adjustment: 360 degrees
-
LED whip attachment adjustment: 360 degrees
-
Mounting puck positions: Top, middle, or bottom
-
Standard finish: Silver aluminum
Upgrade Your UTV LED Whip Setup With TKO Clamping Systems
If you're tired of removing your LED whips every time you load your side-by-side into an enclosed trailer or pull into the garage, the TKO Clamping Systems Motorized UTV LED Whip Mount provides a purpose-built solution.
Lower your LED whips when clearance gets tight. Raise them when you're ready to ride. Do it all with the flip of a switch from the driver's seat.
Built with heavy-duty metal components and extensive mounting adjustability, the TKO Clamping Systems powered whip mount adds convenience to your UTV while helping protect expensive LED whips from low-clearance obstacles on and off the trail.
